ComfoClime

Gentle cooling
as part of the MVHR system

ComfoClime Cooling Module for Zehnder ComfoAir Q MVHR

The Zehnder ComfoClime is the NEW next generation air temperation device designed to help reduce the risk of overheating in homes and supplement heat in the winter. It combines with the ComfoAir Q450, Q600 and Q350 and compliments its features to ensure it automatically activates and deactivates to provide a comfortable, healthy and energy-efficient indoor climate. The Zehnder ComfoAir Q, with state of the art design and intelligent technology, regardless of whether you are working on a new build or an old building, with Zehnder comfortable ventilation you have an innovative, tried and tested complete system. It contains features such as its automatic modulating true summer by-pass, world class heat recovery efficiency and integrated humidity sensor to provide a comfortable, healthy and energy-efficient indoor climate.

Zehnder ComfoClime

Heating & Cooling Technology

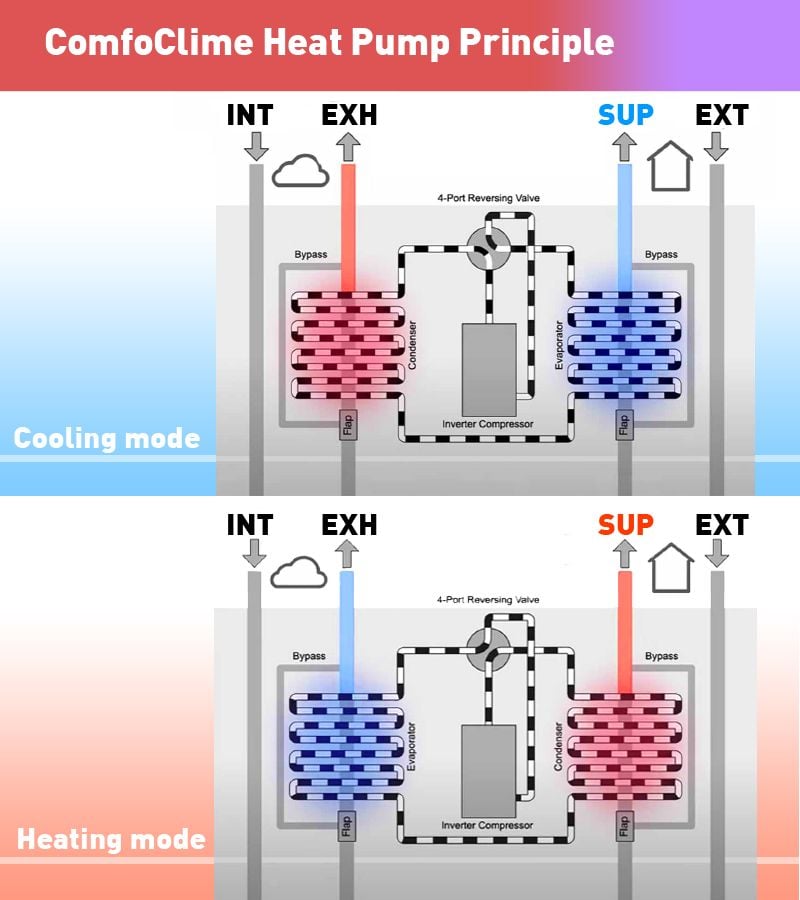

The ComfoClime heating and cooling module is a closed system heat pump, similar to a fridge/ freezer. It is controlled by the temperature settings of the MVHR system, which can easily adjusted with the Zehnder ComfoConnect app (in conjunction with the LAN Pro controller).

Following maximum output in terms of heating and cooling can be achieved (see data sheet):

ComfoClime 24 & CAQ350:
max. 1540 W cooling | 1407 W heating

ComfoClime 36 & CAQ450:
max. 1774 W cooling | 2221 W heating

ComfoClime 36 & CAQ600:
max. 2581 W cooling | 2441 W heating

Zehnder ComfoClime

Installation of the ComfoClime

The Zehnder ComfoClime comes in two variations:

  • ComfoClime 36 for the Zehnder ComfoAir Q450 and Q600 MVHR units,
  • ComfoClime 24 for the Zehnder ComfoAir Q350 MVHR unit.

Following extra components are needed for the connection to the MVHR unit

  • Adaptor set for ComfoClime 36 to ComfoAir Q450 and Q600: 990328768
  • Adaptor set for ComfoClime 24 to ComfoAir Q350: 990328764
  • 15mm EPP 45° bends for the top connection

Please see below some information for the installation of the system.

Installation of Zehnder ComfoClime

Further Information
