Zehnder EVO is an high efficiency dual-flow controlled mechanical ventilation unit with constant flow rate.
Its compact design and slender thickness (just 21-27 cm) makes Zehnder EVO ideal for mounting horizontal on false ceilings, in both new builds and renovation projects; it can also be installed vertically on walls.
The unit is available in standard heat exchanger (HRV) or enthalpy exchanger (ERV) versions, with or without electric preheater.

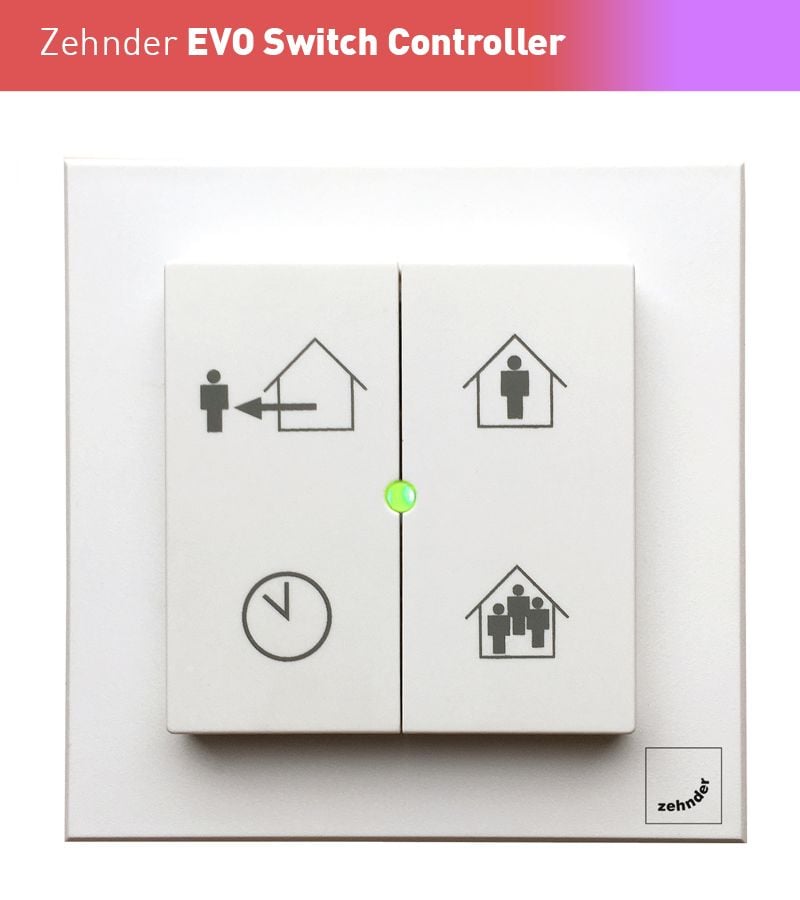

They can be controlled via a remote control unit, a building automation system or an app.
The choice of configurations available, and the wide range of optional filters, make Zehnder EVO the ideal unit for maintaining optimal indoor comfort all year around.
The EVO units are versatile ceiling mounted MVHR units with ultra comact and modern design. They can be flush ceiling mounted without gradient.
These units can also be wall mounted (vertically) and with ERV core they can be slated.
They come in three output levels:

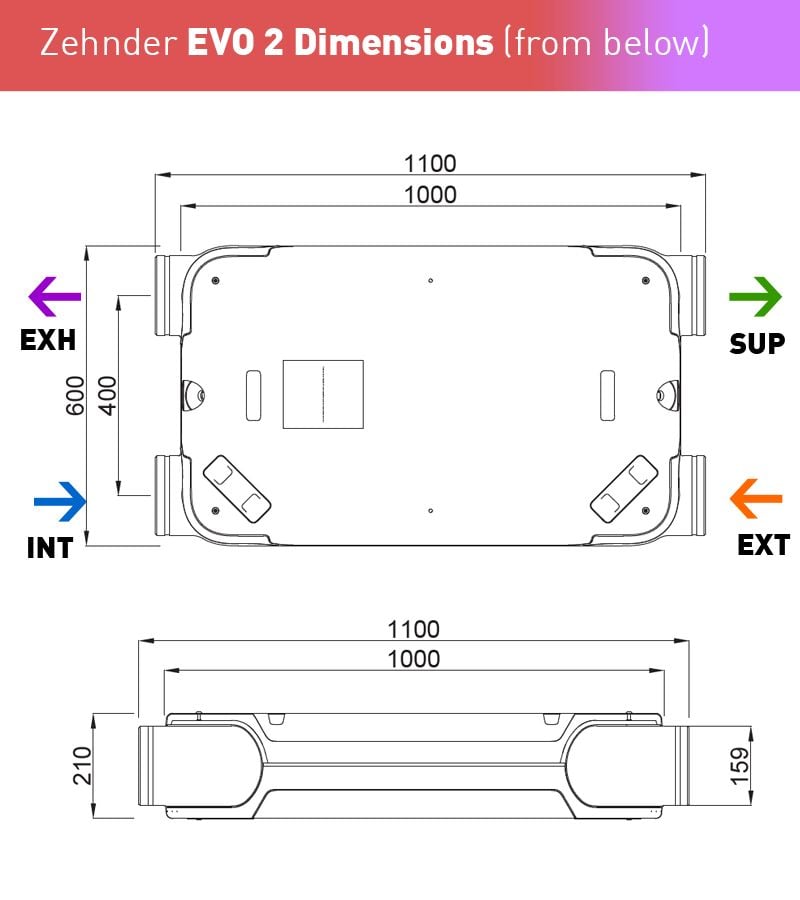

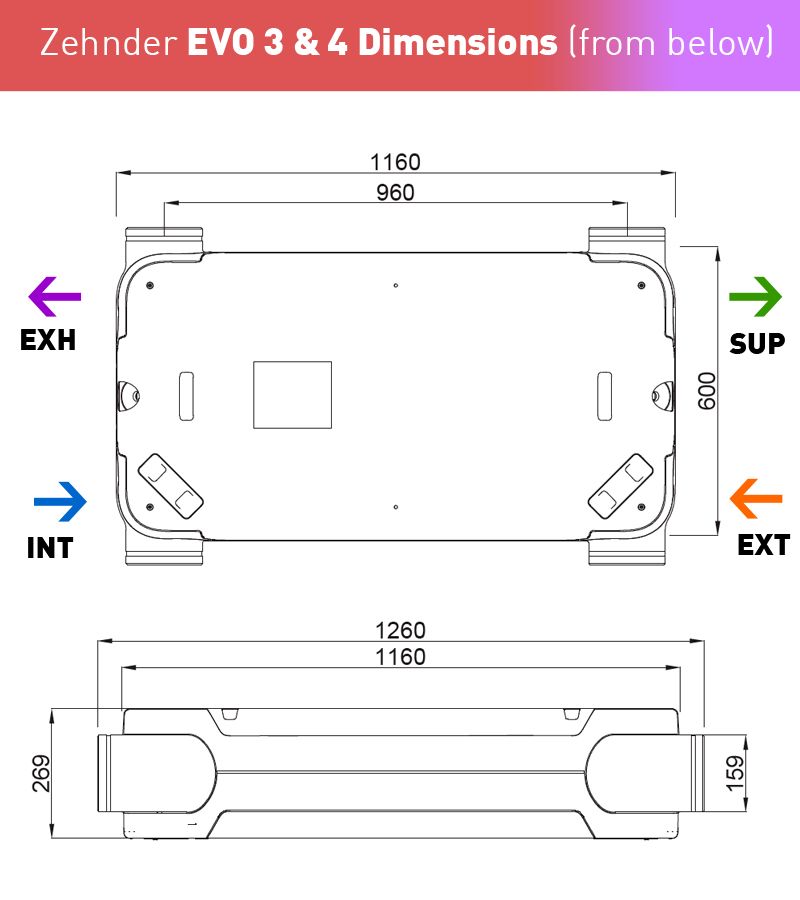

Ultra-slim design: The EVO 2 is only 210mm deep, the EVO 3 and 4 is 269mm deep, which considerably minimises the service zone requirements.

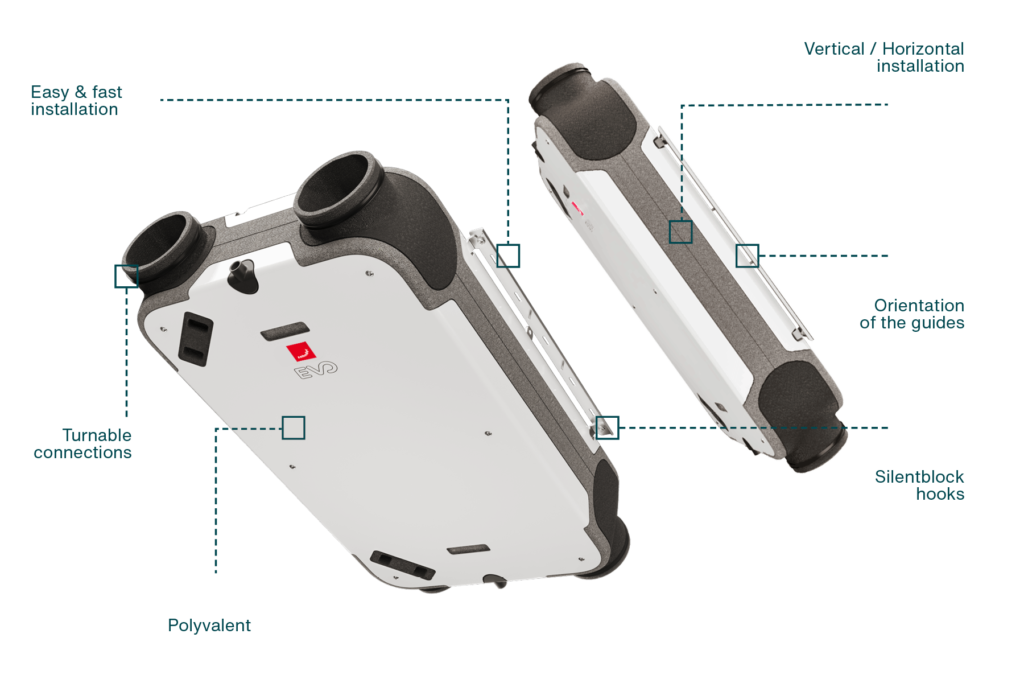

With its adjustable duct connection spigots, it is very flexible for different installation scenarios.
Flexible installation: The handing as shown is the standard configuration. It can be ordered with a reverse spigot configuration: The intake becomes extract, the exhaust becomes supply air.
ERV or HRV versions available.
Smart connectivity:

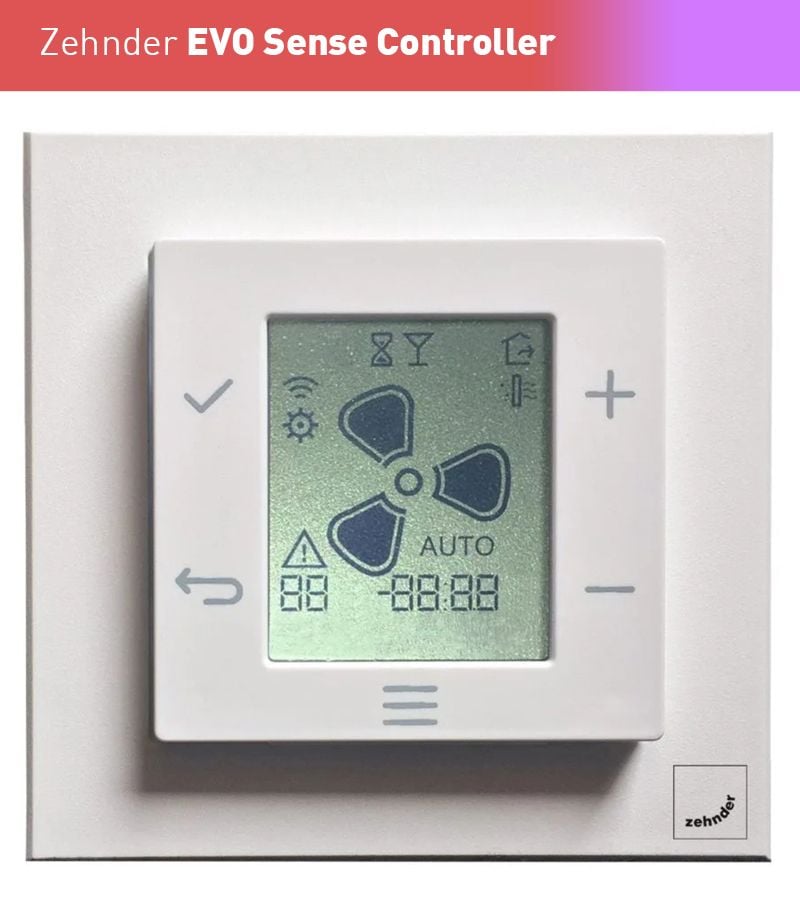

EVO Sense is a radio frequency (RF) user interface for configuring and monitoring Zehnder EVO ventilation units with heat recovery. This device allows the user to switch between automatic and manual ventilation modes, to program hourly or weekly ventilation schedules, and to fine-tune ventilation settings to meet individual preferences through a range of advanced configuration options.
Functions:
