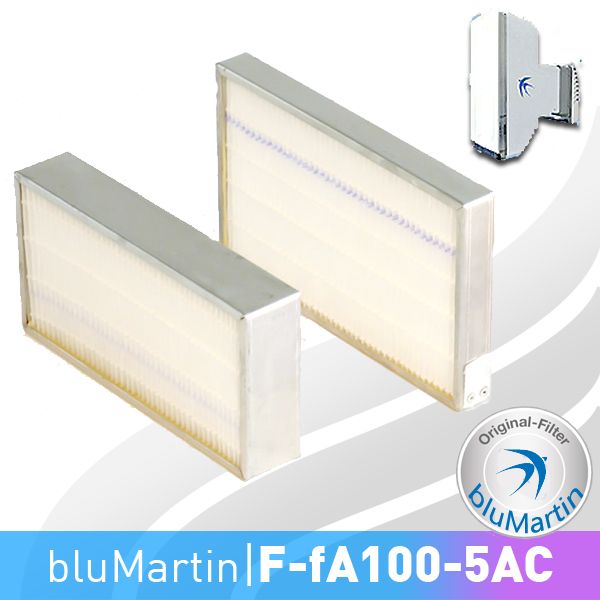

Active Charcoal Filter Set for bluMartin freeAir100

Description

Product code: FA02.1053

The freeAir 100 MVHR units have got two filters of M5 grade installed: An intake filter and an extract filter, which keep the heat exchanger clean and keep the incoming air filtered.

Following video shows the filterchange – unfortunately it is in German – here are the main points to consider:

1. Switch off the MVHR unit by pressing the metal pin on the right hand side of the unit.
2. Keep a cloth handy, in case condensate drips off the unit, when pulling it out.
3. Pull the freeAir 100 unit out of its shell by holding it on the sides (not the bottom of the front plate).
4. Wipe with a cloth the inside of the shell, where the seal of the unit normally sits.
5. Take out and replace the intake filter by slightly bending the metal clamps to the side (at the back of the unit).
6. Take out and replace the extract filter on the side of the unit.
7. Push the MVHR unit back into its shell. Make sure it is fully pushed back.
8. While the unit is off keep the button on the front pressed, while switching on the unit (press pin on the r/h side) until a beep sounds – the unit is now in service mode.
9. Switch the unit off again and wait until the lights have come off completely.
10. Now the unit can be switched on, the filter timer is re-set.
