ComfoPost 10 Heating & Cooling Battery

Original price was: £1,308.58.Current price is: £1,046.86. £1,256.23 incl. VAT

On Backorder

Supplier Art No: (398480003)

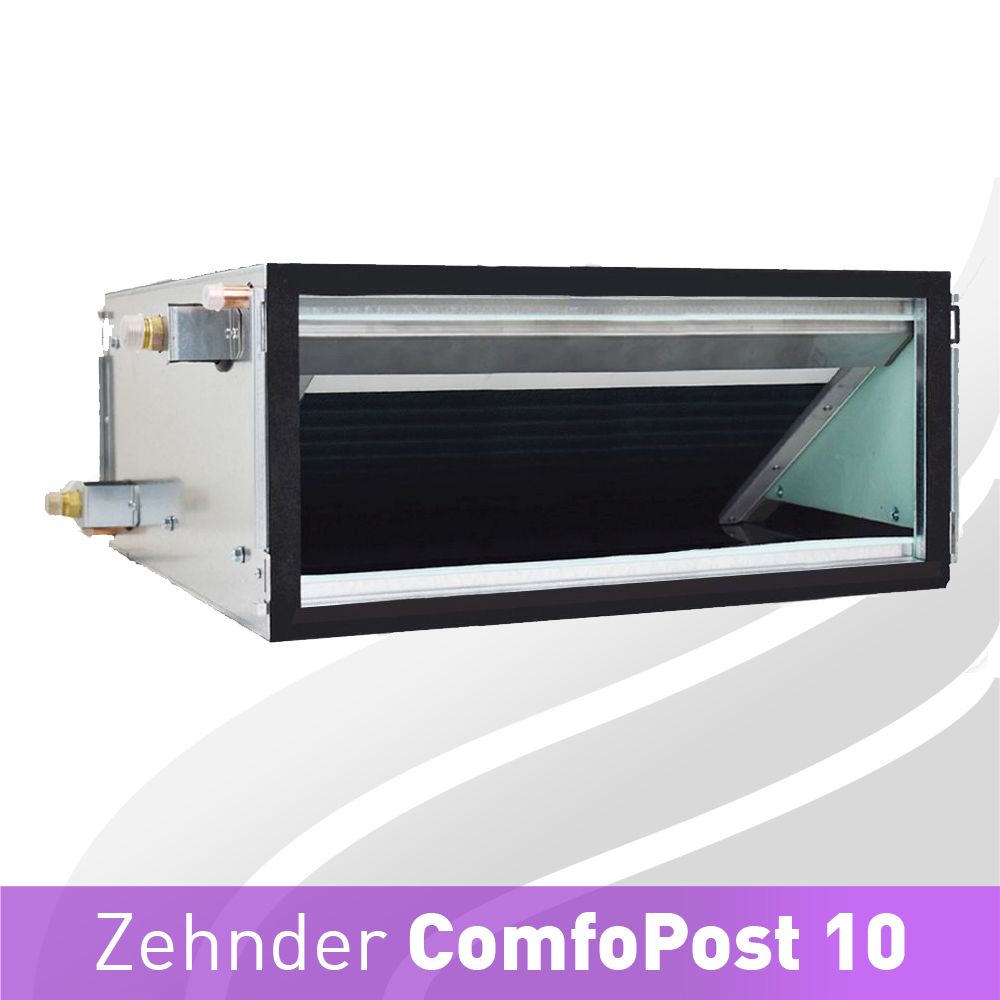

The Zehnder ComfoPost is an air to water exchanger for use with ComfoWell air distribution connections.

Key features:

  • Suitable for airflows up to 138.9 l/s = 500 m3/hr.
  • Ideal for use with reversible heat pumps or chillers to meet SAP 10 or TM59 overheating demands
  • Low pressure losses
  • Filtered fresh supply air, not recycled stale air (as with most A/C systems)
  • Suitable for use with the unique modular ComfoWell manifolds 520
  • Suitable for horizontal or vertical installation
  • Condensation water tray and drain as standard
  • Suitable for Passive House application
  • Corrosion resistant
  • Maintenance free

For most items our delivery charge is £7.48+VAT. Orders over £180.00 are free of delivery charges.

We ususally deliver stocked items within 1-3 days.

Unfortunately, we can only process orders from Scotland, England and Wales (with UK/ EU payment cards).

Please note that PAUL Heat Recovery will not ask for your card details, but we re-direct to Take Payments, our secure payment gateway.

Description

Technical features:

  • Height/ width/ depth:  230mm/ 520mm/ 520mm
  • Water connection diameter (ø): 1/2″
  • Water connection type: BSPT male thread
  • Condensate drain diameter OD (ø): 14mm
  • Condensate connection type: Worm drive clip to fix to hose or crimped to copper pipe
  • ComfoWell range: ComfoWell 520
  • ComfoWell rigid round air connection options (ø): 150mm / 160mm / 180mm / 200mm
  • ComfoWell semi-rigid air connection options (ø): 10 x 75mm / 10x 90mm / 4 x 90mm + 6 x 75mm
  • Material
    Casing: Galvanised sheet steel
    Tubes: Copper
    Fins: Aluminium with hydrophilic treatment
  • Recommended operating water temperature range: 7 to 55 °C
  • Recommended maximum operating air flow: <138.9 l/s (<500 m3/hr)
  • Maximum thermal heating output: 5.21kW*
  • Maximum thermal cooling output: 4.57kW*
  • Maximum operating water pressure: 6 bar
  • Water volume capacity: 1 Litre
  • Weight: 19 kg

*Total capacity (sensible and latent) based on test conditions shown in the Performance Data table
