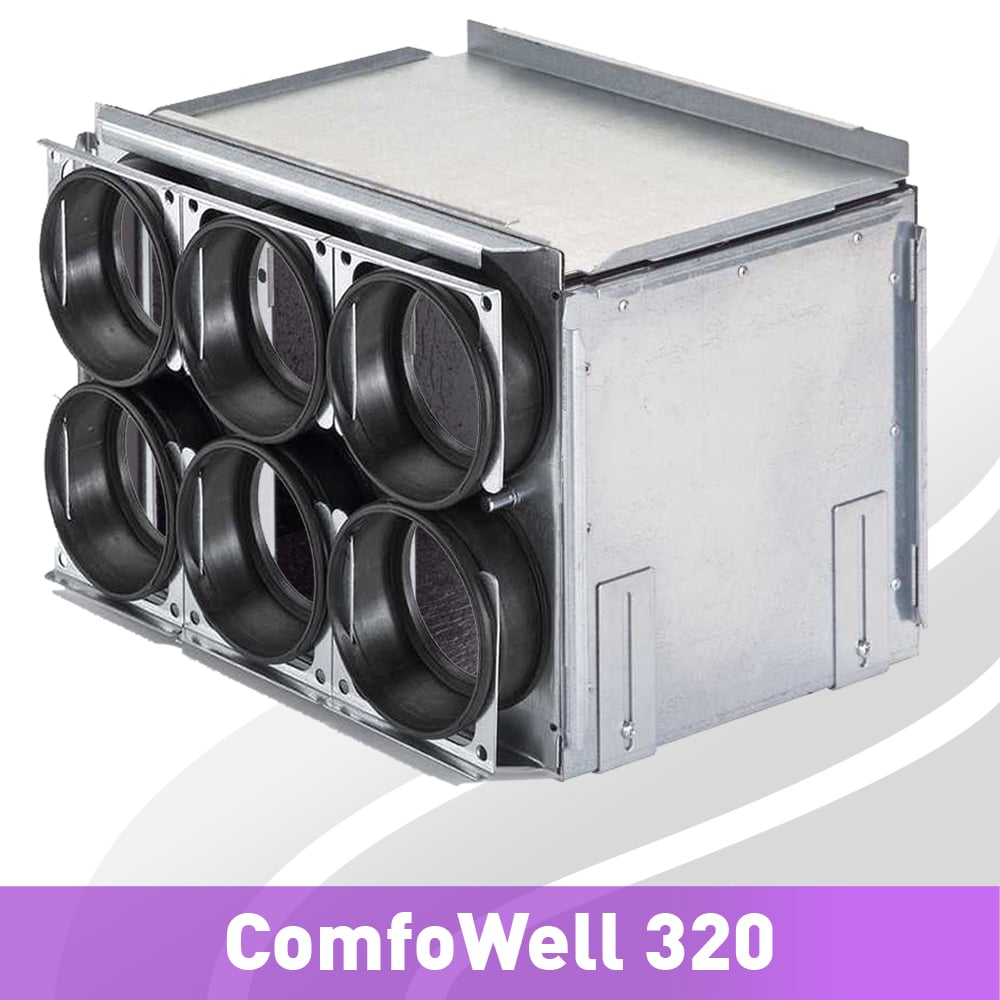

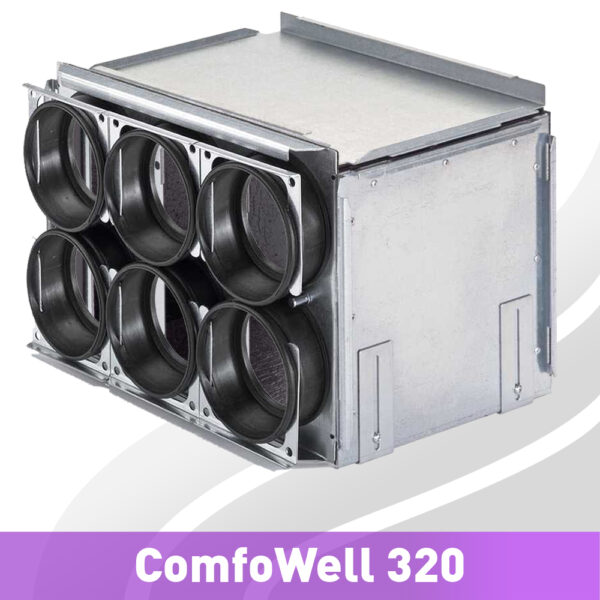

Zehnder Comfowell 320 modular air manifold, attenuator and filter system

Description

Zehnder Comfowell 320 modular air manifold, attenuator and filter system.

Product features:

• Dimensions: W: 341mm; H: 233mm
• Recommended max. air volume: 66.6l/s (240 m³/h) at normal ventilation level
• Housing: Galvanised metal
• Fire rating to ISO13501
• Easy to assemble due to modular and compact design
• All connections with rubber gaskets, metal sliders for fixing ducting in place
• Attenuated inner lining: Closed-cell melamine resin foam (manifold box and attenuator)
• The mounting plate can be connected to the manifold box, or directly to the attenuator or the filter housing.
• The manifold box offers straight through or 90 degree (top or bottom and side) connections.
• The system can be directly connected with a Zehnder ComfoAir 160 and ComfoAir Q350 MVHR unit.
