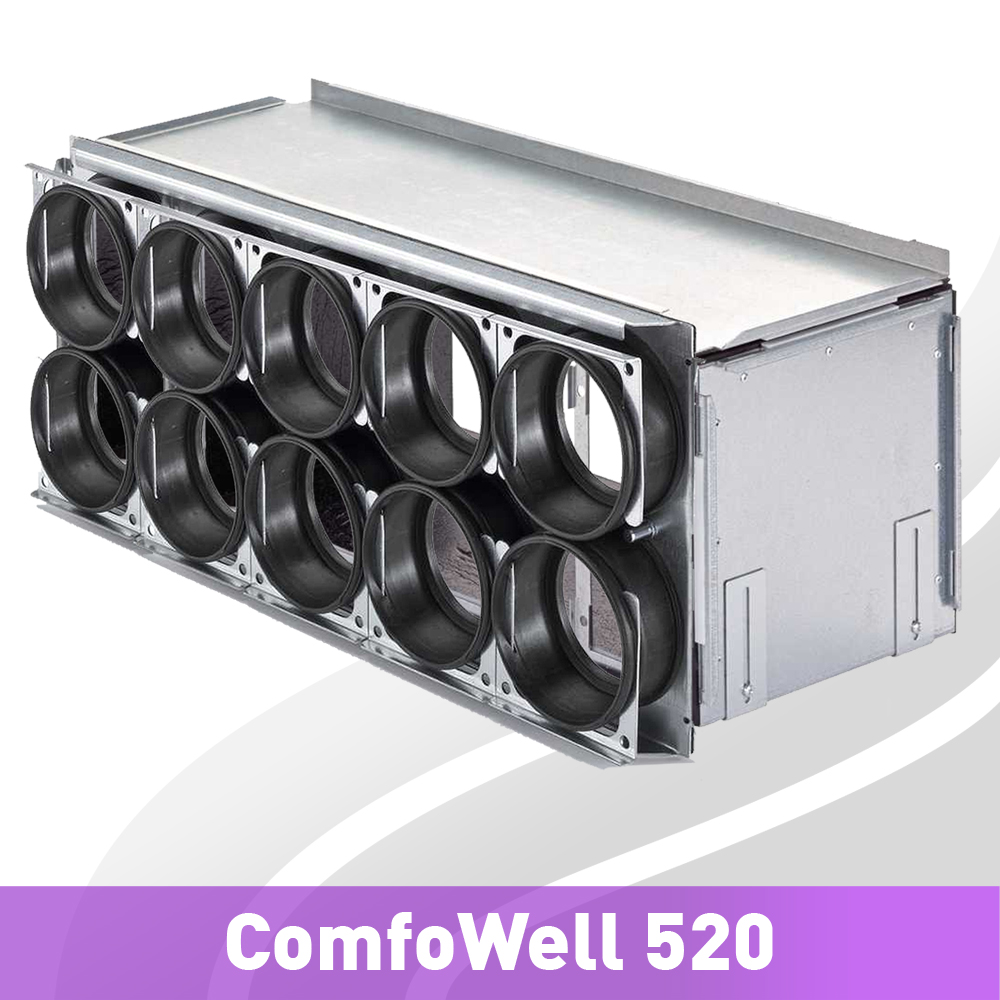

Zehnder Comfowell 520 modular air manifold, attenuator and filter system

Description

Zehnder Comfowell 520 modular air manifold, attenuator and filter system.

Product features:

• Dimensions: W: 541mm; H: 233mm
• Recommended max. air volume: 111 l/s (400 m³/h) at normal ventilation level
• Housing: Galvanised metal
• Fire rating to ISO13501
• Easy to assemble due to modular and compact design
• All connections with rubber gaskets, metal sliders for fixing ducting in place
• Attenuated inner lining: Closed-cell melamine resin foam (manifold box and attenuator)
• The mounting plate can be connected to the manifold box, or directly to the attenuator or the filter housing
• The manifold box offers straight through or 90 degree (top or bottom and side) connections
• The system can be directly connected to the ComfoAir Q350, 450 or 600 MVHR unit
