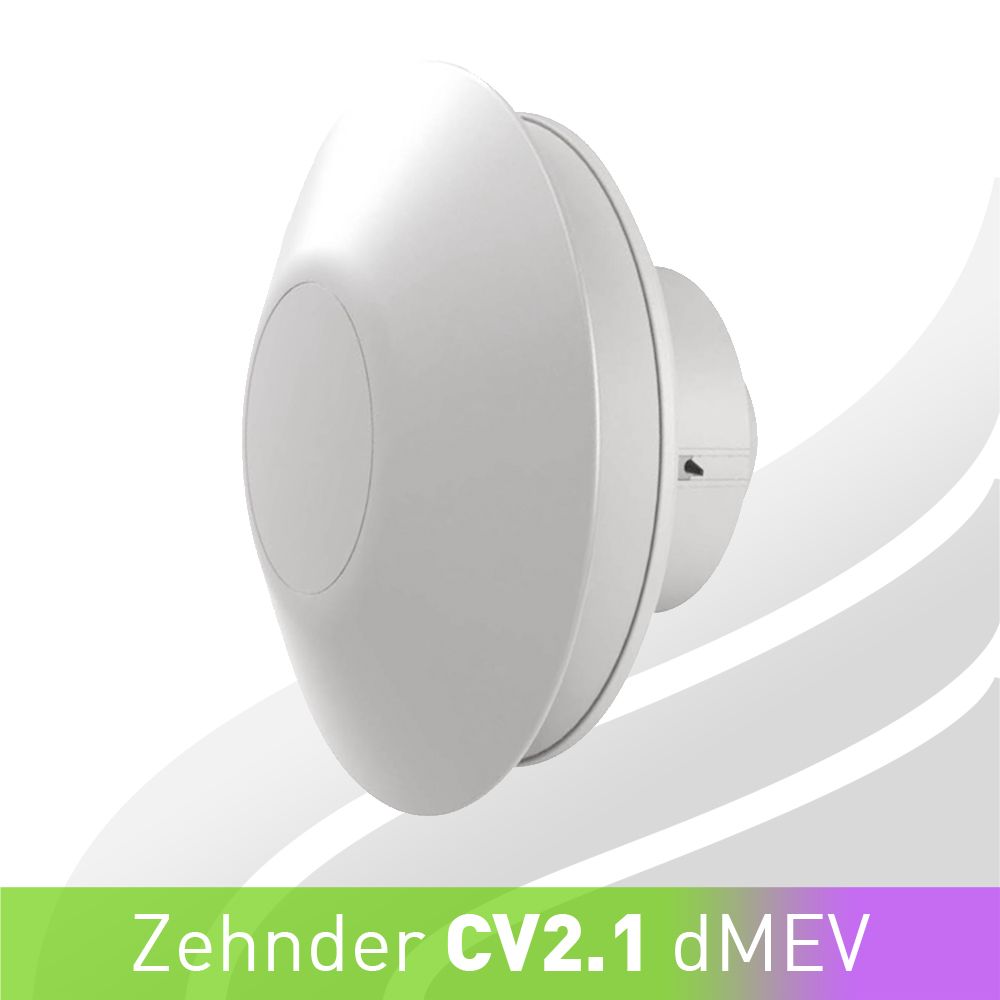

Greenwood CV2.1 dMEV Fan

Original price was: £150.47.Current price is: £75.24. £90.29 incl. VAT

On Backorder

Greenwood Unity CV2 GIP low energy dMEV fan, with SMART humidistat/ timer.

smart technology





SKU E-CV2.1 Category

For most items our delivery charge is £7.48+VAT. Orders over £180.00 are free of delivery charges.

We ususally deliver stocked items within 1-3 days.

Unfortunately, we can only process orders from Scotland, England and Wales (with UK/ EU payment cards).

Please note that PAUL Heat Recovery will not ask for your card details, but we re-direct to Take Payments, our secure payment gateway.

Description

Physical specification:

  • Weight: 0.53kg
  • Spigot: Ø100mm
  • Materials: White satin finish/gloss finish ABS/PCABS/PC plastic

Installation

  • Wiring: Must comply with IEE Regulations
  • Cable: Ø 2 core 1mm2 max – Ø 3 core 1.5mm2 max
  • Fuse: 3 amp normally required (when fan is supplied from a 6A lighting circuit no local fuse is required)
  • Electrical 220–240V~50Hz Class II specification: SELV Class III
  • Installation: Wall or ceiling
  • Consumption: Min 0.5W; Max 6.6W
  • Do not use with gravity shutters



Key features:

  • Unity CV2.1 has been tested and certified against the 2021 UK Building Regulations – giving specifiers the confidence to commission a fully functional and compliant solution into homes.
  • Extension to the industry leading Unity range of extract fans
  • Suitable for all installation applications Unity CV2.1 can be applied to all wet rooms and removes the need for large ducting networks and high background ventilation requirements
  • Once calibrated, the controls can be locked to avoid unnecessary changes being made to the fan’s running mode. Unity CV2.1 will also remember it’s calibrated settings in the event of loss of power, such as a power cut or during any maintenance to the property or the unit
  • Like other units in the Unity range, Unity CV2.1 can be installed in walls, windows (with a separate adaptor kit) or ceiling mounted and ducted quickly and easily, with minimal disturbances to existing infrastructure
  • Using as little as 0.5 Watts, Unity CV2.1’s energy performance is ideal for directly reducing carbon emissions in SAP
  • Unity CV2.1 short 68mm spigot design makes it perfect for application in shallow ceiling voids
  • The unique 100% variable airflow feature, conveniently achieved using the + and – buttons, offers peace of mind to Installers that Building Regulation compliance can be easily achieved
  • Unity’s SMART technology features, including automatic humidity sensing and a logical approach to overrun timing, help to reduce heat loss and energy wastage
  • Refined and sleek design helps Unity CV2.1 to blend in with its environment
  • The capacitive touch pad ensures ease of access, located on the front panel and simple commissioning
  • Unity CV2.1 offers ultra-quiet ventilation as low as 11dB(A) in low speed mode once installed

Specification of ducting

  • Maximum duct length: 6m using rigid Ø100mm or 204x60mm flat ducting.
  • 110x54mm ducting is not recommended
  • For every 90° bend subtract 0.5m of the maximum duct length.
  • Alternative ducting: 110mm ComfoTube: pressure drop is around 1.5pa per 1000mm of duct length
  • 50PA is the highest pressure drop to achieve 11 l/s
  • 35PA is the highest pressure drop to achieve 16 l/s
