| Model | ComfoAir 70 | ComfoSpot 50 | |
| Type of system | Retrofit MVHR with supply and extract ducting | De-central retrofit MVHR | |
| Recomm. max. floor area | [m2] | 37 m2 | 37 m2 |
| Max. air flow @100Pa | [m3/h] | 65/ 18 l/s | 55/ 15 l/s |
| Min. air flow | [m3/h] | 15/ 4 l/s | 15/ 4 l/s |
| Recommended air flow | [m3/h] | 20-40/ 5.6-11 l/s | 15-25/ 4-7 l/s |
| Orientation | wall, spigots back or side | wall | |
| Performance | |||
| Heat Recovery (Passive H) | % | 85% | 80% |
| Heat Recovery (SAP) | % | X | X |
| Humidity Recovery | % | 64% | 54% |
| Specific Electric Power (PH) | [Wh/m3] | 0.24 | 0.3 |
| SFP (SAP) | [W/l/s} | N/A | N/A |
| SAP Kitchen + max. wet rms | N/A | N/A | |
| Noise | ***/ ***** | **** | |
| Breakout noise @3m @60% | [dB(A)] | 27.3 | 17.1 |
| Breakout noise @3m 60m3/h | [dB(A)] | 36.4 / two ducts: 22.7 | 23.3 |
| Breakout noise @3m 90m3/h | [dB(A)] | X | X |
| Breakout noise @3m 120m3/h | [dB(A)] | X | X |
| Breakout noise @3m 150m3/h | [dB(A)] | X | X |
| Breakout noise @3m 180m3/h | [dB(A)] | X | X |
| Breakout noise @3m 210m3/h | [dB(A)] | X | X |
| Breakout noise @3m 240m3/h | [dB(A)] | X | X |
| Breakout noise @3m 270m3/h | [dB(A)] | X | X |
| Technical | |||
| Spigot Size | [mm] | 100 internal | N/A |
| Weight | [kg] | 14 | 5 |
| Materials internal | EPP/ Alu | EPP/ ABS | |
| Type of heat exchanger | ERV | ERV | |
| Condensate connection | [mm] | None | None |
| Filter grade (*optional) | M5/ F7* | M5/ F7* | |
| Frost protection | [°C] | inherent to -8 | inherent to -8 |
| Peak winter performance | Yes | Yes | |
| Max power pre-heater* | [W] | X | X |
| Max. power cons. w/o pre-h. | [W] | 17 | 15 |
| Motors, volume flow constant | EC | EC | |
| Summer bypass | [100%] | Yes | Yes |
| Controls | in-built controller | in-built controller | |
| Type of controller | X | X | |
| App control/ monitoring | X | X | |
| Boost activation | Auto | Auto | |
| Humidity sensor | Integrated* | Integrated* | |
| CO2 sensor | Integrated* | Integrated* | |
| BMS capability | No | No | |
| Fire alarm integration | indirect w. relay | indirect w. relay | |
| Fault indicator | No | No | |
| Heating & cooling options | X | X | |
| Cooling module | X | X | |
| Max. cooling output | [W] | X | X |
| Max. heat output | [W] | X | X |
| Integrated controls | X | X | |
| Refrigerant | X | X | |
| Hot water tank | X | X | |
| Servicability | Made in | D/ NL | D/ NL |
| All parts replaceable | Yes | Yes | |
| Fan bearings exchangeable | |||
| Warranty – free of charge | [years] | 2 | 2 |
| Warranty – extended | [years] | 4 (through us) | 4 (through us) |

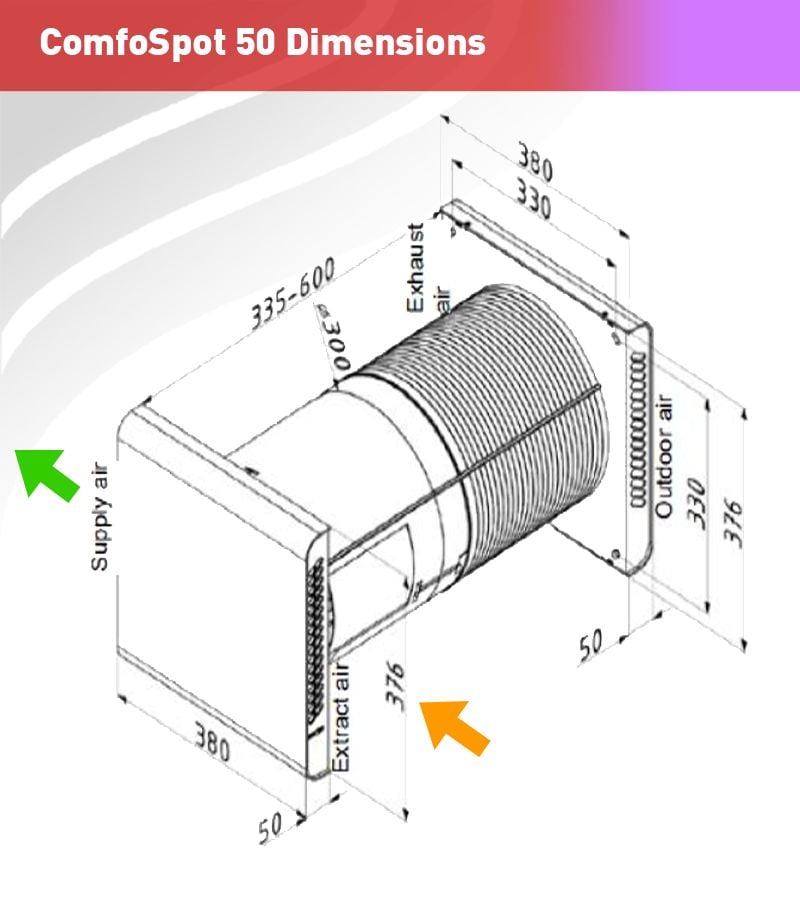

The ComfoSpot 50 needs a ~340mm core through an external wall with a minimum depth of 335mm up to 600mm. Extension pieces are available.
Compared to the ComfoAir 70, the ComfoSpot 50 is a quieter de-central solution when no ducting is to be connected. If ducting can be connected, then the ComfoAir 70 is a quieter solution.
The ComfoAir 70 needs a ~270mm core through an external wall with a minimum depth of 275mm up to 600mm. Extension pieces are available.
Compared to the ComfoSpot 50, the ComfoAir 70 is a quieter solution when ducting can be connected.
The ComfoAir 70 has 100mm duct connections on its side and back.
Only one supply and one extract room can be connected to the MVHR unit.
The EPP end cap on the back can be taken out and inserted into the side port, when ducting is connected to it.
Possible ducts that can be connected:
Please see below for a brief summary how to install the ComfoSpot
