ComfoPost 12 Heating & Cooling Battery

Name: Buy ComfoPost 12 Heating & Cooling Battery Online | Paul Heat Recovery
SKU: HCW12
Price: 1119.74 GBP
Availability: InStock

Original price was: £1,399.68.Current price is: £1,119.74. £1,343.69 incl. VAT

On Backorder

Supplier Art No:(399000003)

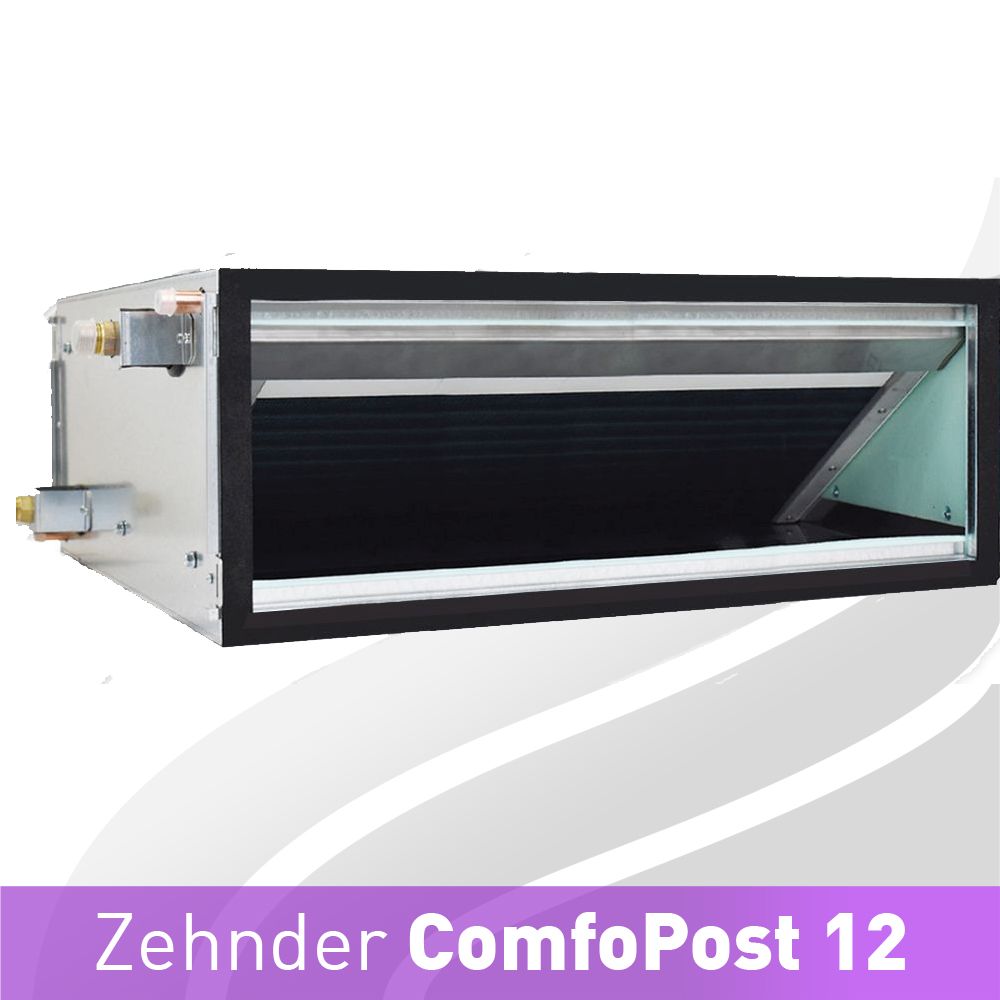

The Zehnder ComfoPost is an air to water exchanger for use with ComfoWell air distribution connections.

Key features:

Suitable for airflows up to 166.6 l/s = 600 m3/hr.
Ideal for use with reversible heat pumps or chillers to meet SAP 10 or TM59 overheating demands
Low pressure losses
Filtered fresh supply air, not recycled stale air (as with most A/C systems)
Suitable for use with the unique modular ComfoWell manifolds 625
Suitable for horizontal or vertical installation
Condensation water tray and drain as standard
Suitable for Passive House application
Corrosion resistant
Maintenance free

SKU HCW12 Category Post Heater for Heating & Cooling

For most items our delivery charge is £7.48+VAT. Orders over £180.00 are free of delivery charges.

We ususally deliver stocked items within 1-3 days.

Unfortunately, we can only process orders from Scotland, England and Wales (with UK/ EU payment cards).

Please note that PAUL Heat Recovery will not ask for your card details, but we re-direct to Take Payments, our secure payment gateway.

Description
Reviews (0)

Description

Technical features:

Height/ width/ depth: 230mm/ 625mm/ 520mm
Water connection diameter (ø): 1/2″
Water connection type: BSPT male thread
Condensate drain diameter OD (ø): 14mm
Condensate connection type: Worm drive clip to fix to hose or crimped to copper pipe
ComfoWell range: ComfoWell 625
ComfoWell rigid round air connection options (ø): 150mm / 160mm / 180mm / 200mm
ComfoWell semi-rigid air connection options (ø): 12 x 75mm / 12x 90mm / 6 x 90mm + 6 x 75mm
Material
Casing: Galvanised sheet steel
Tubes: Copper
Fins: Aluminium with hydrophilic treatment
Recommended operating water temperature range: 7 to 55 °C
Recommended maximum operating air flow: <166.6 l/s (<600 m3/hr)
Maximum thermal heating output: 6.51kW*
Maximum thermal cooling output: 5.64kW*
Maximum operating water pressure: 6 bar
Water volume capacity: 1.2 Litre
Weight: 22.4 kg

*Total capacity (sensible and latent) based on test conditions shown in the Performance Data table
